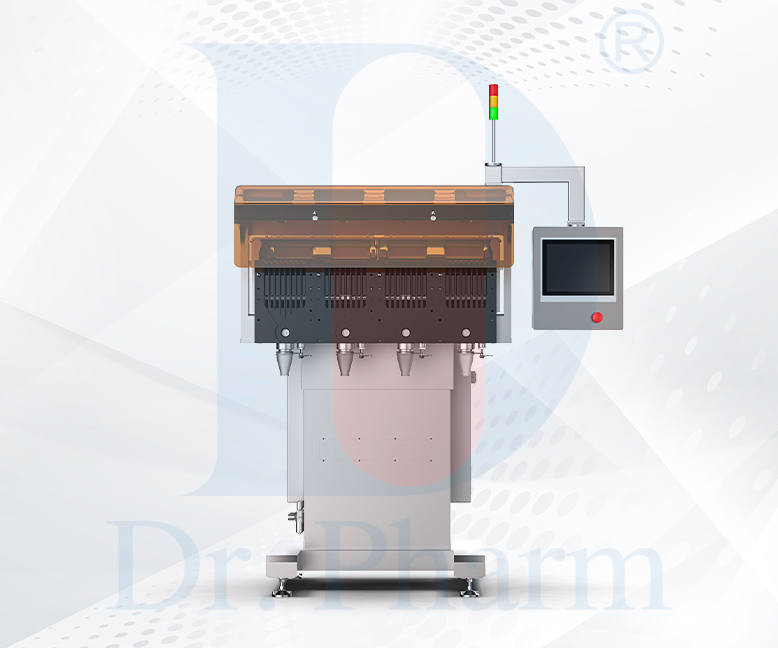

CZG-C series tablet counting machine can be widely used in pharmaceutical industry, health care product industry and food industry; it can automatically and accurately count circular tablets, special-shaped tablets, capsules, soft capsules and other granular materials, and load them into the containers; it can be used alone, or combine with high-speed bottle unscrambler, paper inserter, automatic cap screwing machine, electromagnetic capper and labeling machine to form a complete tablet counting, bottling and packaging production line.

The rotary gate device is used to realize the pre-counting function, which can save the time of bottle changing, fill fast, optimize the control program, reduce the loss time, and improve the absolute speed of single funnel.
Vertical counting channel, visual feeding, a wide range of application, is suitable for tablets, capsules, transparent and colored soft capsules, special-shaped tablets, etc.
The cylinder is used for pneumatic clamping between the vibrator and the conveyor, and is convenient to disassemble and clean.
The machine is provided with the linear array CCD camera and high-speed ARM processor for accurate counting, and no manual adjustment is required for the counting sensor.
CCD camera is away from the dust source is not easy to stain.
The lifting funnel is adopted, and can cover the bottle mouth when the material is dropped; besides, it has the vibration function to solve the blocking problem, and its vibration frequency is adjustable.
The machine has a waste rejection function, and the rejection device can reject the granules in inaccurate count, or fragments and particles from the bottle.
The color touch screen, can display more abundant information with the simple and orderly pictures and simplified parameters, are simple and easy to learn.

Model		CZG50/8C	CZG100/16C	CZG150/24C	CZG150/32C
Overall dimensions(mm)	Length	1070	1330	1700	1870
	Width	1870	1840	1850	1880
	Height	2200	2300	2300	2300
Weight (kg)		400	750	1250	1400
Power (kW)		1	1.2	1.5	1.75
Compressed air (MPa)		0.5 ~ 0.7	0.5 ~ 0.7	0.5 ~ 0.7	0.5 ~ 0.7
Air consumption (L/min)		50	100	120	150
Maximum speed (tablets/minute)		5000	10000	14000	16000
Number of linear feeder channels		8	2×8	4×6	4×8
Drug specification	Capsule	00# ~ 5#	00# ~ 5#	00# ~ 5#	00# ~ 5#
	Tablet diameter (mm)	3 ~ 15	3 ~ 15	3 ~ 15	3 ~ 15
	Tablet thickness (mm)	3 ~ 10	3 ~ 10	3 ~ 10	3 ~ 10
	Tablet length (mm)	3 ~ 25	3 ~ 25	3 ~ 25	3 ~ 25
Bottle specification	Diameter (mm)	Φ30 ~ Φ100	Φ30 ~ Φ100	Φ30 ~ Φ70	Φ30 ~ Φ90
	Bottle height (mm)	40 ~ 250	40 ~ 250	40 ~ 250	40 ~ 250
