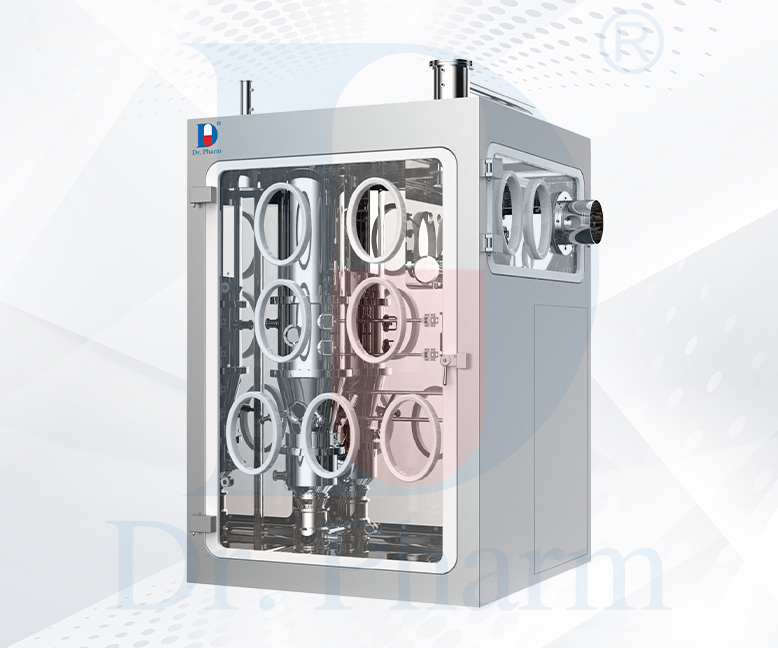

YTJ2-5-HC High Containment Integrated Granulation Unit-Dr.Pharm

YTJ2-5-HC High Containment Integrated Granulation Unit is suitable for the production of oncology and highly allergenic products which can cause certain harm to humans, such as tablets, capsules, granules, etc. This Unit including RMG, Co-mill ,FBD and Dry mill.

High containment operating without leakage.
Complies with FDA/cGMP production requirements
Unique exhaust process system design, which can be up to OEB4 level. Filter replacement by bag in bag out, which can effectively prevent dust leakage and harm to human body during filter replacement.
Equipped with protection functions for power outage and gas outage to prevent accidental product leakage.
<span style="font-family:"text-wrap-mode:wrap;">Programmable logic controllers (PLC) and PC based options provide a wide range of recipe processing, Parameters acquisition, and network communication functions.

Function name	Function Parameters		Model
			YTJ2-2-5-HC
High shear mixer & Co mill	Production capacity (depends on material)(kg)		2-5

	Impeller motor power (kW)		2.2

	Chopper motor power (kW)		0.75

	Co mill motor power (kW)		1.1

Fluid bed processor(FBP)	Production capacity (depends on material)(kg)	Drying	2-5



		Granulation (option)	2-5

	Power of heater(PID control)(kW)		9

	Exhaust fan power (VFD control)(kW)		5.5
	Air volume (m³/min)		6000
Dry mill	Motor power (VFD control)(kw)		1.1
	Motor RPM (VFD control)		2800
