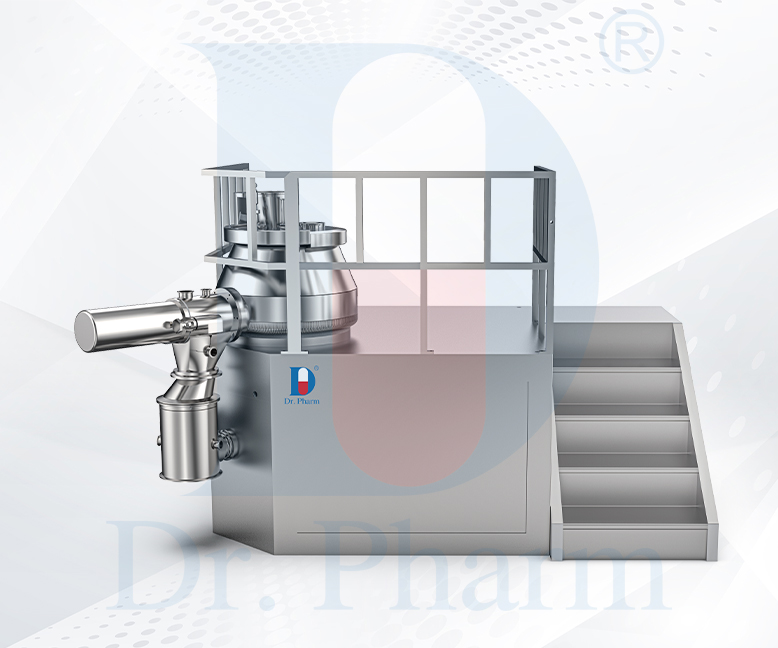

LHSG-HC of high containment wet granulator is suitable for the production of anti-cancer, high sensitization and other kinds of particles that have certain harm to the normal human body, such as tablets, capsules, granules, etc. It has a variety of functions such as mixing and granulation equipment.

Ratio of the diameter of the pot body and heigh make the granules forming effect is more uniform, and the granules forming reproducibility is good.
The gap between the pot body and the stirring paddle is controlled within 1.5mm, and the bottom of the pot has no material residue;
Inlet air control valve uses proportional adjustment.
The determination system of the end point of granulation ensures the reproducibility of granulation reliably.
WIP system assures cleaned,  no dead corner.
Good containment, Containment grade achieve OEB4 standard.
Feeding with αβ valve docking.
Wet granulation is equipped with a negative pressure exhaust system, and the exhaust air through efficient filtration.
All dynamic sealing systems, such as pot cover sealing, mixing shaft sealing, granulating cutter shaft sealing all adopts double sealing, sealing state  can be monitored.
Equipped with power off and gas off protection measures to ensure that the equipment will not leak in the case of sudden power off and gas off.
Optional explosion-proof design, can provide ExⅡB (explosive gas) and Exa21 /B21 combustible dust) protection grade design.
The machine complies with FDA/ cGMP production requirements.
The machine can provide anti-10bar detonation design according to the needs of users.

Model	Main Dimension			Feeding Quantity (kg/batch)  (Material Bulk Density 0.5kg/L)	(kW)Impeller power load	(kW)Chopper power load	(kW)Miling power load
	L	Y	W
LHSG-100-HC	2100	1650	2800	20-40	11	3	3
LHSG-200-HC	2600	1900	2950	60-80	18.5	4	4
LHSG-300-HC	3000	2090	3530	60-120	22	5.5	5.5
